Description

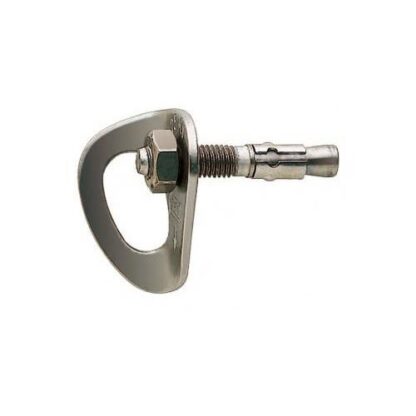

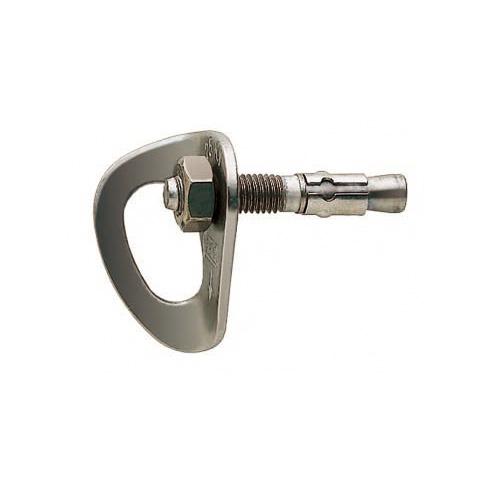

Petzl Coeur Goujon (10 mm / 12 mm)
Description
- Consists of a COEUR hanger, expansion bolt and nut
- Hanger can be removed
- Available in two versions: COEUR hanger mounted on a 10 mm bolt or on a 12 mm bolt
Specifications
- Material(s): stainless steel
- Certification(s): EN 795 A1, EN 959
References
| References | P32 | P33 |
|---|---|---|
| Diameter | 10 mm | 12 mm |
| Weight | 85 g | 120 g |
| Granite, gneiss > 80 MPa: preliminary testing recommended | Granite, gneiss > 80 MPa: preliminary testing recommended | |
| Hard limestone > 80 MPa: preliminary testing recommended | Hard limestone > 80 MPa: preliminary testing recommended | |
| Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing mandatory | Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended | |
| Soft rock (soft sandstone, limestone) < 45 MPa: no | Soft rock (soft sandstone, limestone) < 45 MPa: no | |
| Very high quality concrete (work of art) > 50 MPa: preliminary testing mandatory | Very high quality concrete (work of art) > 50 MPa: preliminary testing recommended | |
| Medium quality concrete 25 < x < 50 MPa: no | Medium quality concrete 25 < x < 50 MPa: preliminary testing mandatory | |
| Length | 5,5 cm | 6,7 cm |
| Drilling depth | > = 5,5 cm | > = 6,7 cm |
| Drilling diameter | 10 mm | 12 mm |
| Type of installation | Expansion | Expansion |
| Resistance to cutting on concrete 50 MPa | 25 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 18 kN | 18 kN |
| Guarantee | 3 years | 3 years |
